UPT-23-10
Product Description:

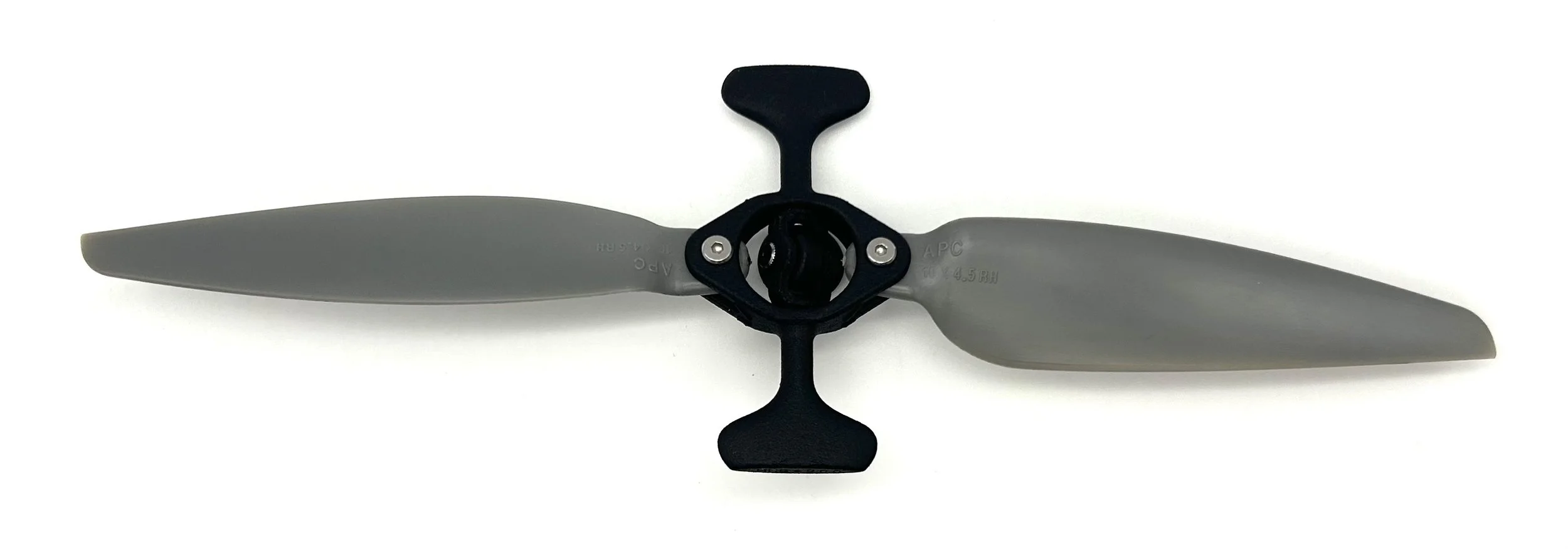

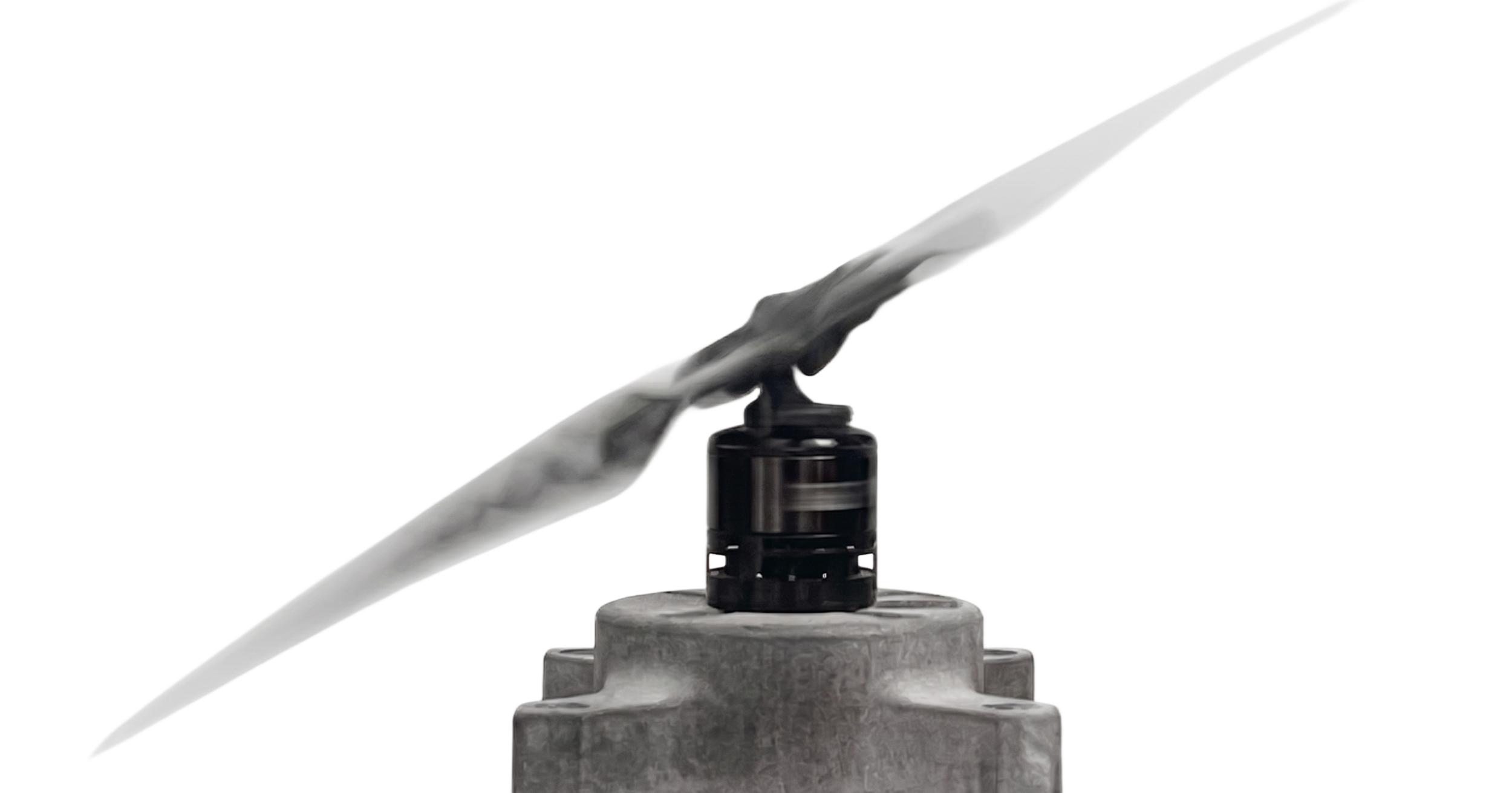

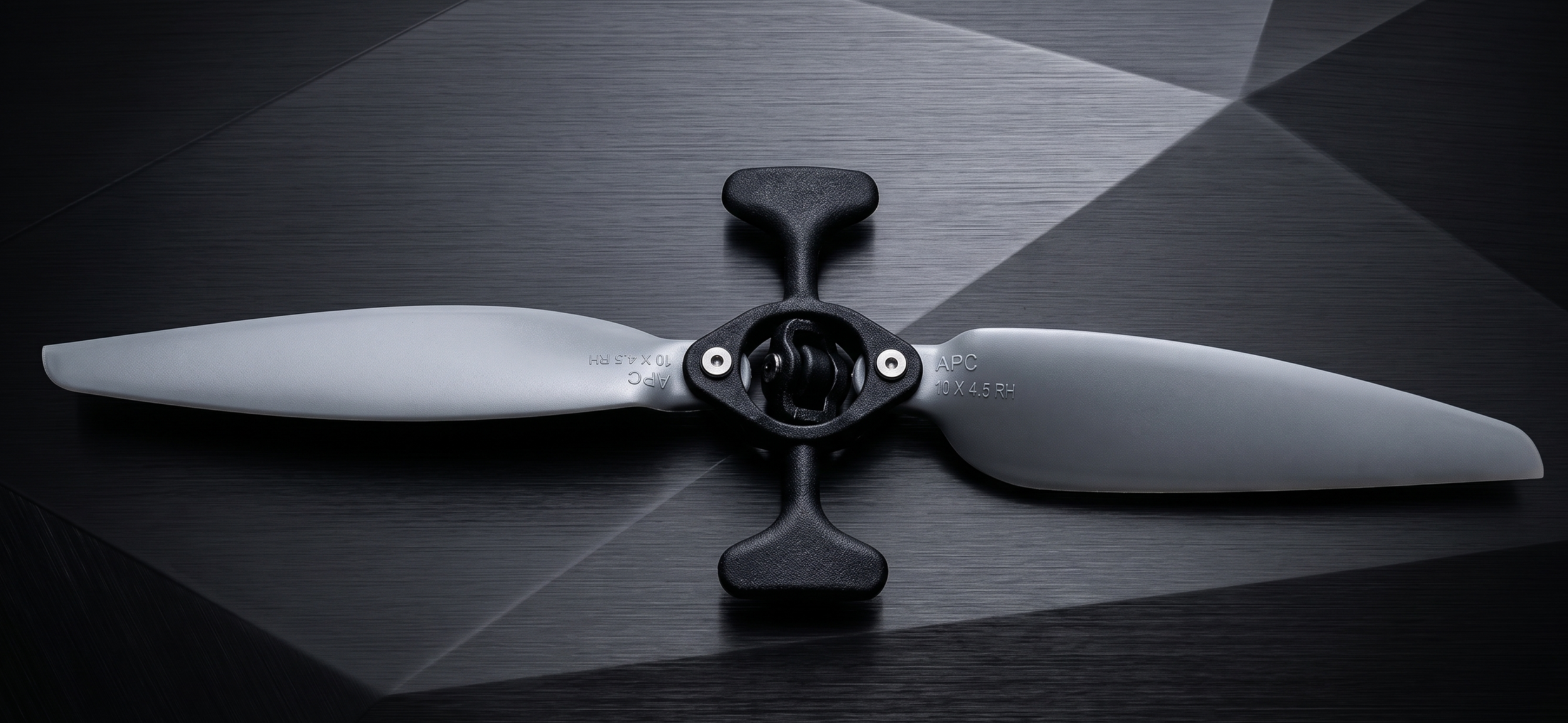

The UPT-23-10 is a 10-inch underactuated propeller with a teeter hinge designed for industrial sUAS applications. The propeller consists of a hub with a 45 degree hinge through the center of mass and two blades attached to the hub via a teeter hinge. The UPT-23-10 pairs with Vertiq’s 23-06 2200Kv Module or 23-14 920Kv Module with pulsing firmware. During operation, the propeller produces and vectors thrust.
Propeller Details
UPT-23-10
-
Diameter: 10.4 in
Pitch: 4.5 in
Mass: 24.6 g
Direction: Available in clockwise (UPT-23-10-CW) & counter-clockwise (UPT-23-10-CCW)

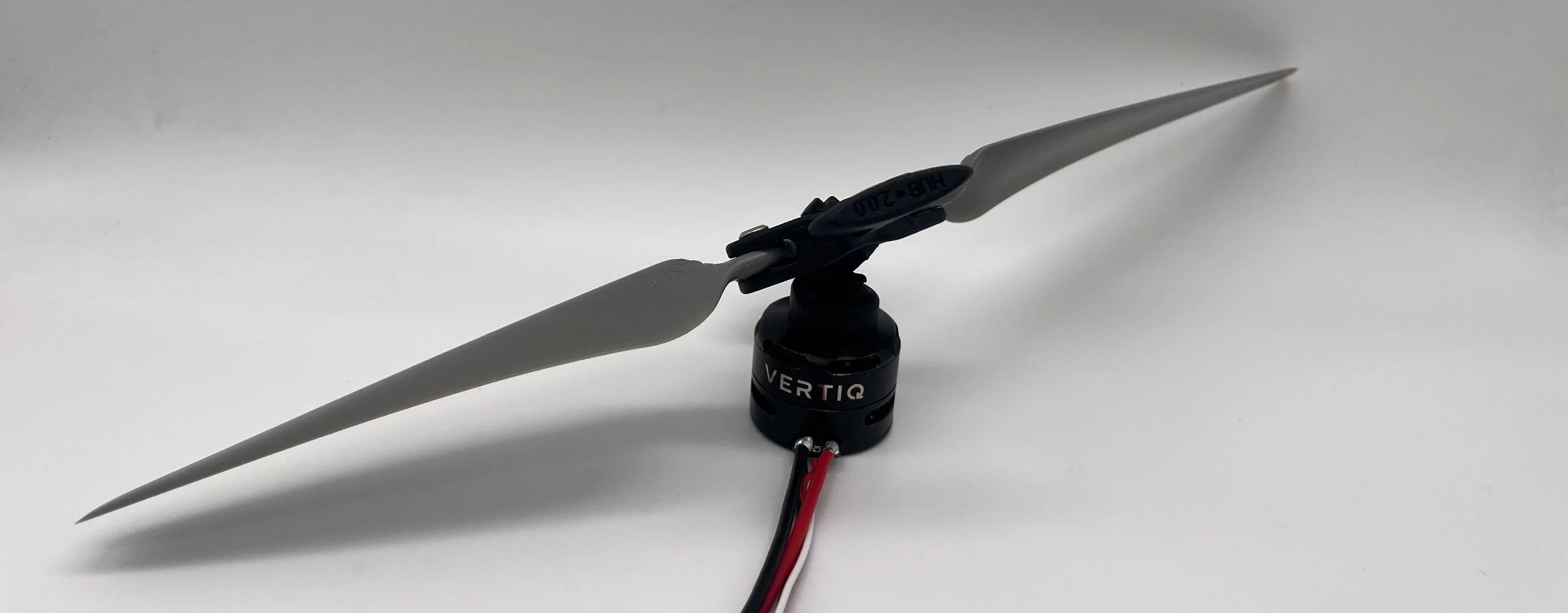

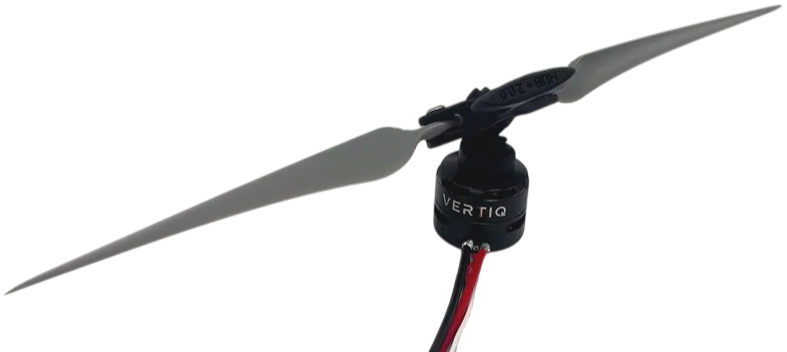

Pairs With: Vertiq 23-06 2200Kv or 23-14 920Kv Module with Pulsing Firmware
-
3 degrees of freedom with one actuator
Generate and vector thrust in 3 axes
Increase hover efficiency
Minimize number of actuators on aircraft
-
-
-
